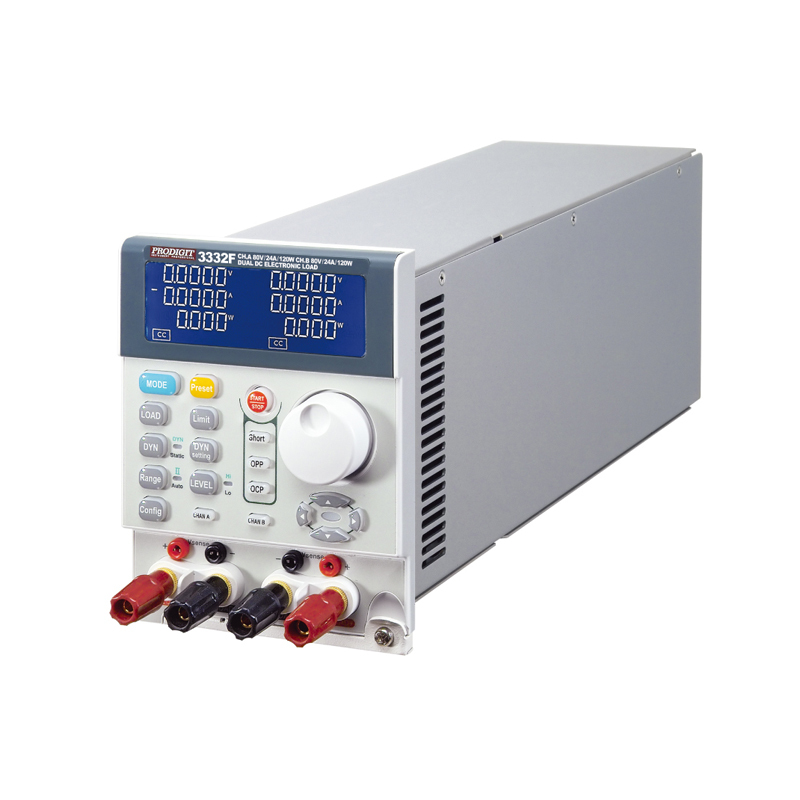

3332F Dual DC Electronic Load 80V,24A,120W *2

Description

l 3330F Series Dual DC Electronic Load is a two load unit in one module. Each 3330F Series module has its own control and display panel, CC/CR/CV/CP/ Dynamic modes, plug in 3300F with 150 sets Store/Recall memory which provides load set-up more efficiently¡Aalso can be remote controlled via RS232¡BEthernet¡BUSB and GPIB interface.

l SHORT time setting and SHORT_VH, SHORT_VL setting function¡Aalso can measure Short Voltage and Current.

l Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually.

l The additional OCP ¡BOPP test function will be more efficiency and accuracy on OCP, OPP testing.

l Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ¡§ + ¡§ or ¡§ ¡V ¡§ is selectable and 150 sets Store / Recall larger memory is much advance features for each different application.

l 150 sets test parameter and status storage function can call the storage memory real time in accordance with the auto sequence requirement.

Features

l 5 digital V / A/W Meter.

l Isolated two loads unit within one module.

l Large LCD Display¡Bsetting values can be adjusted by rotary knob or push button.

l 2 sets V. A. W. values can be displayed simultaneously.

l OCP¡BOPP test function.

l Must be configured in 3302F¡esingle channel mainframe¡f¡B3305F¡etwo channels mainframe¡for 3300F¡efour channels mainframe¡fand the mainframe with 150 sets Store / Recall memory.

l Power ON status value can be set.

l Flexible CC. CR, CV, CP, Dynamic and Short operation modes.

l SHORT time setting and SHORT_VH, SHORT_VL setting function.

l Protections against V, I, W, and ¢XC.

l Voltage meter display the polarity positive¡]¡¨ ¡Ï ¡¨¡^or negative¡]¡¨ ¡Ð ¡¨¡^is selectable.

l SYNC. Load ON function.

l Optional Interface : GPIB¡BRS232¡BUSB¡BLAN.

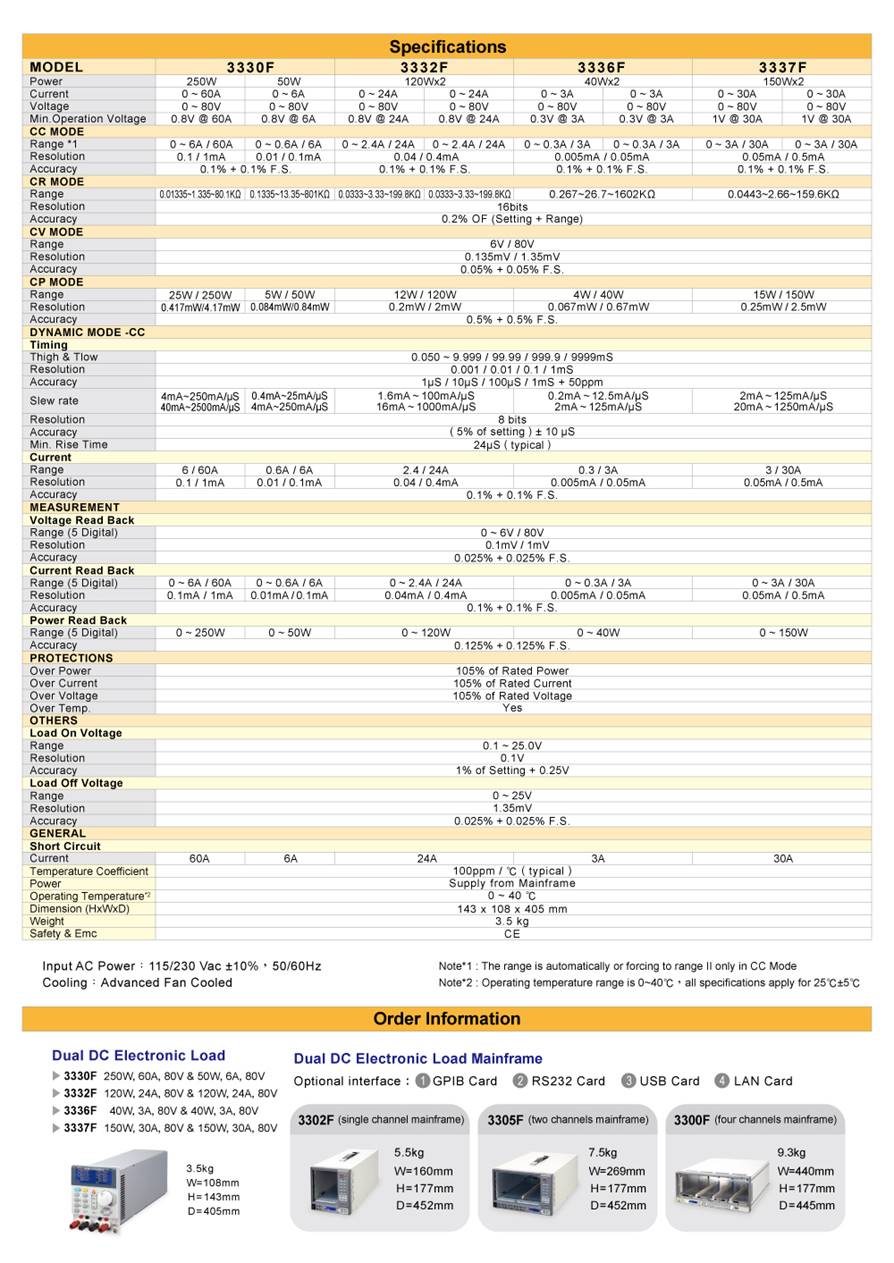

Specifications
